  • Conveyor potato digger (2-row)

    potato harvester

Click For Tech Info...

SPECS TECH

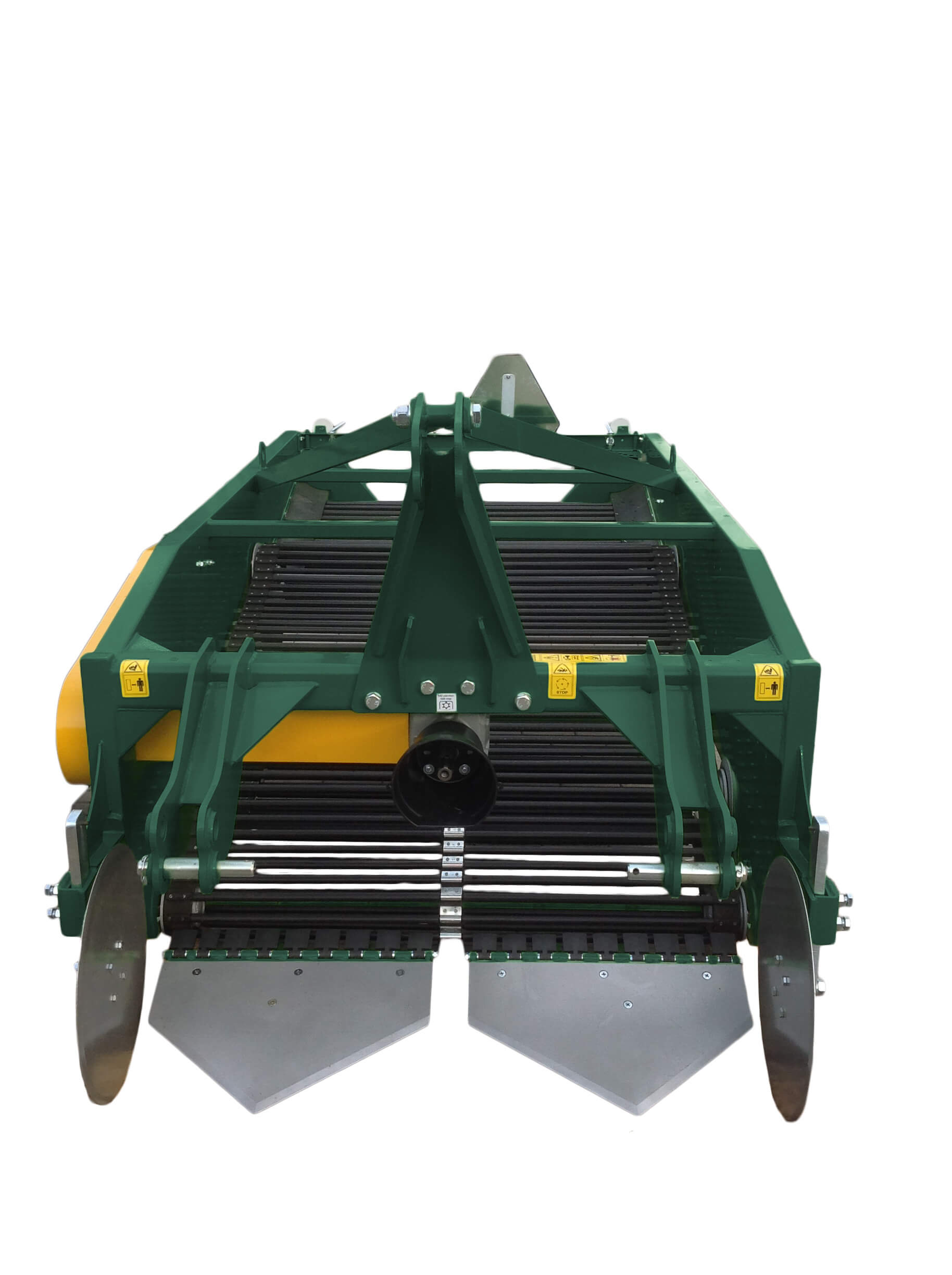

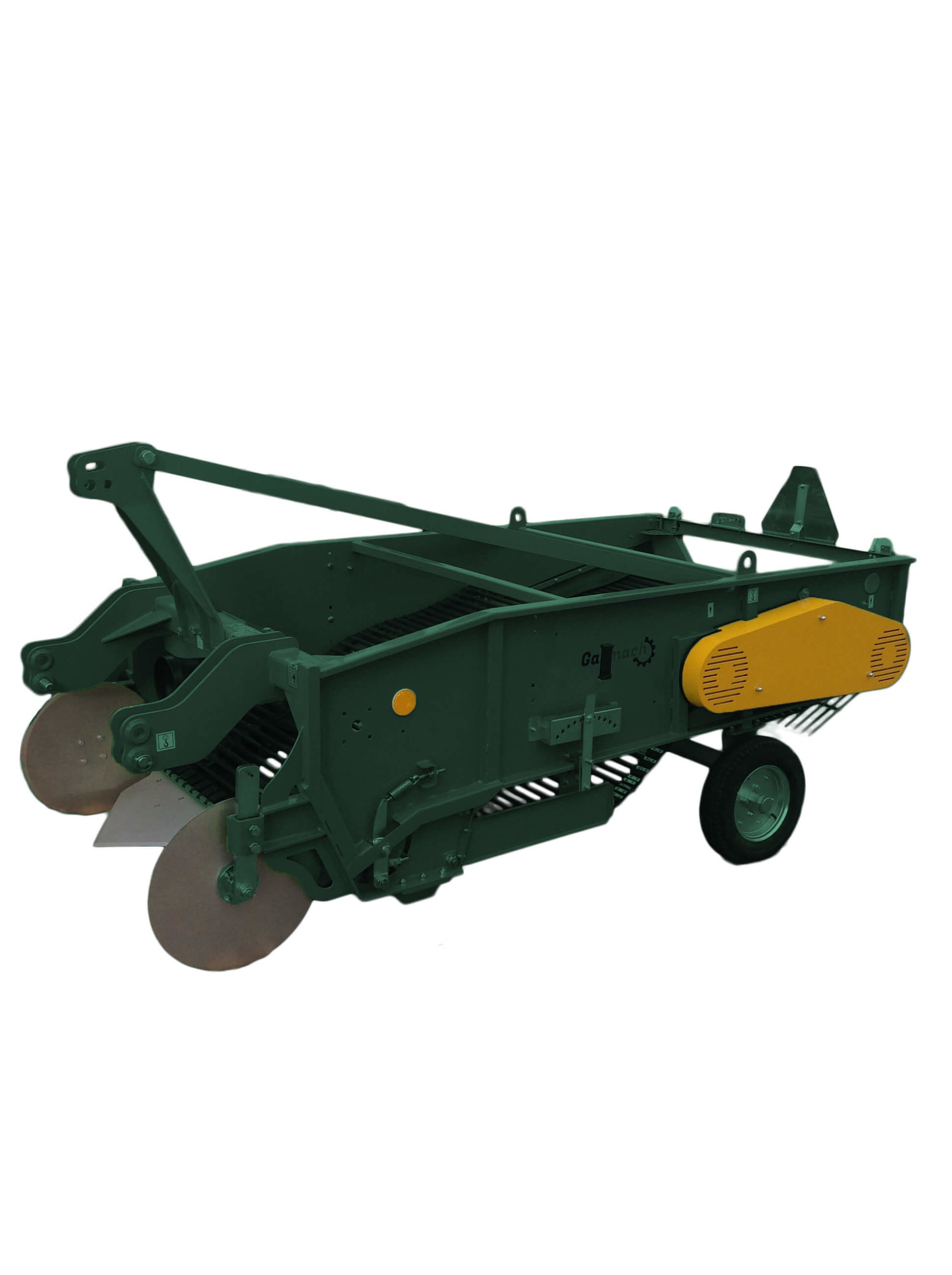

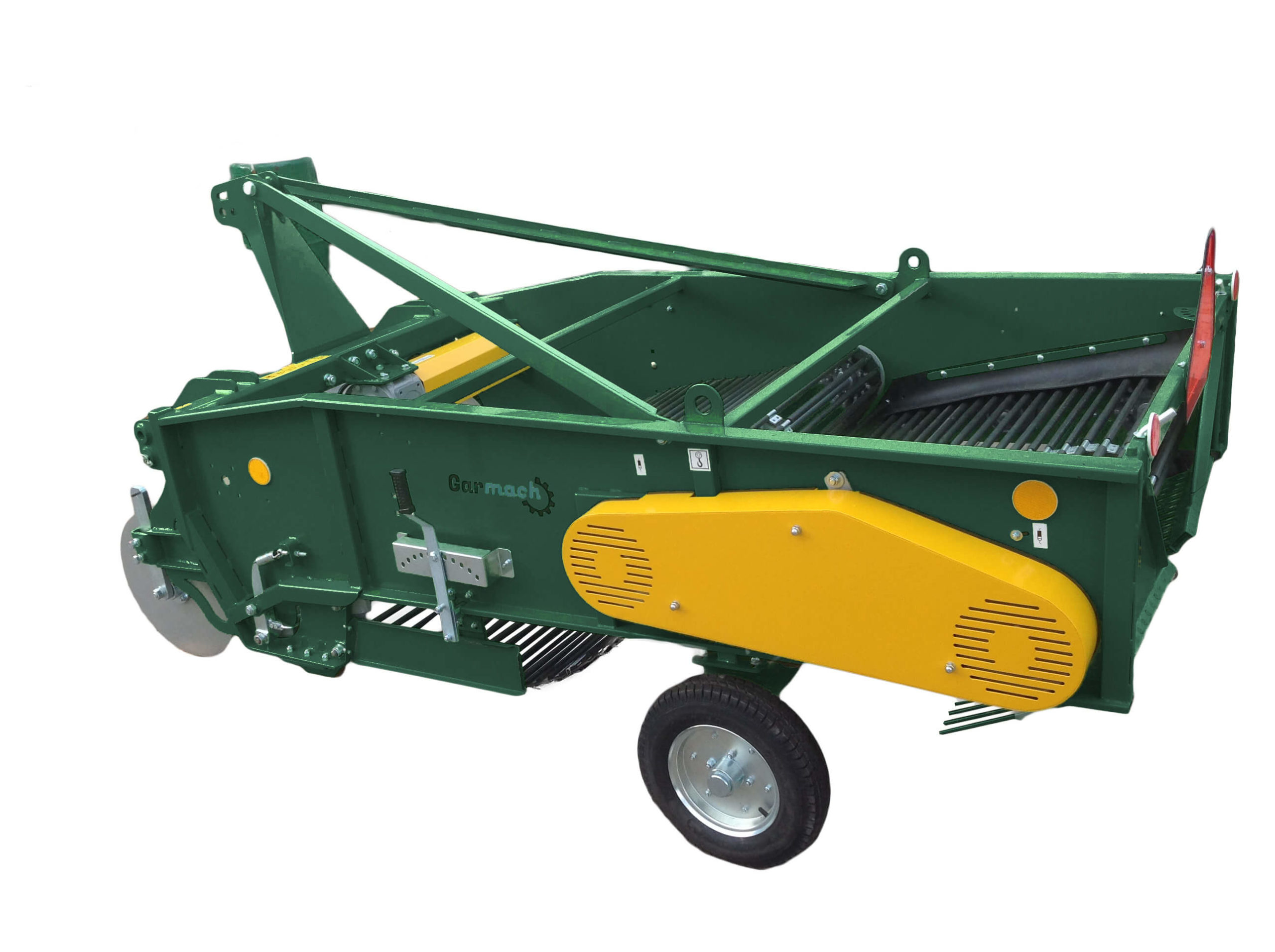

The conveyor potato diggers (2-row) / potato harvesters

The conveyor potato diggers (2-row) / potato harvesters are a two-row machine mounted on the three-point suspension system and driven by the tractor power take-off shaft. The digger / potato harvester is adapted for a tractor equipped with the suspension system of the II and III cat. For stable operation and transport, the digger is equipped with wide spacing road wheels. Properly placed ploughshare digs two adjacent ridges and side coulters mounted in the machine cut off excess soil and lichen residues. Undercut ridge is passed onto the sieving belt. As a result of moving and shaking of the belt, the ridge is crushed and the soil is sieved through the conveyor bars with simultaneous passing of plant tuber / root dug towards the back of the machine. In the digger / potato harvester there are one or two sieving conveyors with rubber cover belt to reduce the risk of damage to tubers or roots dug to a minimum. At the back of the digger, there are properly profiled chute grates which direct the dug potatoes onto the ridge behind the digger. The chute grates allow for such a placement of plant tubers / roots dug which reduces the possibility of damage to a tuber / root by the tractor tires during the next passing. The machine can be used on plantations with distance between rows: 62,5 – 67,5 or 70 – 75 cm.

Please see tech specs ↓

  • Symbol – Z656/3 | Z656/1 | Z656/4 | Z656/2

  • Number of rows pcs 2

  • Distance between rows mm 625 – 675 | 700 – 750

  • Number of the conveyor belt pcs 1 | 2 | 1 | 2

  • Productivity ha / h to 0,4 to 0,5

  • Machine weight kg 650 | 800 | 690 | 860

  • Power demand kW/HP - 37/50 | 40/55

want to order?

  • CONVEYOR POTATO DIGGER Z656 (1-ROW)

    potato harvester

Click For Tech Info...

SPECS TECH

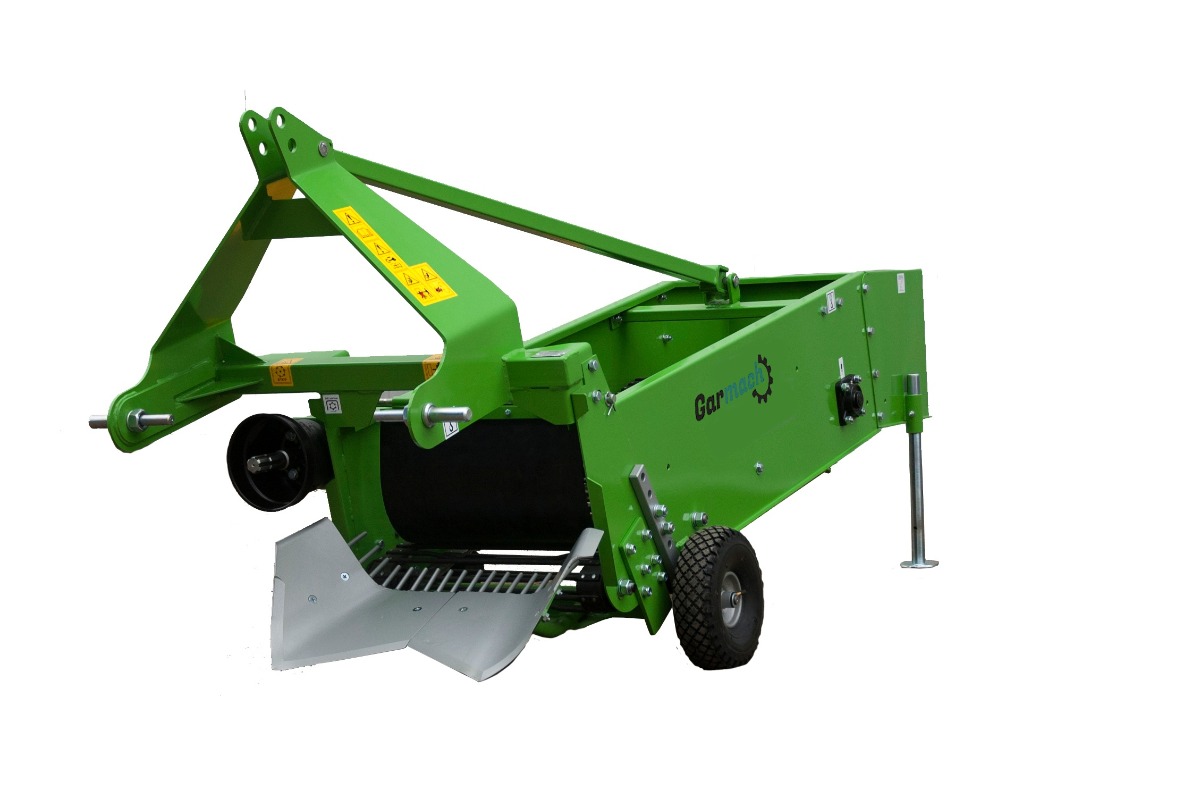

CONVEYOR POTATO DIGGER Z656 (1-ROW)

The conveyor potato digger Z656 (1-row) is a one-row machine mounted on the three-point suspension system and driven by the tractor power take-off shaft. The digger is adapted for a tractor equipped with the suspension system of the II cat. The machine is equipped with wheels (metal or rubber) with adjustment of ridge digging depth. Ridge with potatoes is dug by a properly arranged share, then passed to a sieving belt. As a result of moving and shaking of the belt, the ridge is crushed and the soil is sieved through the conveyor bars with simultaneous passing of plant tuber / root dug towards the back of the machine. At the back of the digger there is a properly profiled chute grate which directs the dug potatoes onto the ridge behind the digger. The chute grate allows for such placement of dug potato tubers to limit the damage by the tractor tires during the next passing. The machine can be used on plantations with distance between rows: 62,5 – 67,5 cm. The digger may be equipped with conveyor belt with rubber cover to reduce tuber damage to a minimum.

Please see tech specs ↓

  • Symbol – Z656

  • Number of rows pcs 1

  • Distance between rows mm 625 – 675

  • Number of the conveyor belt pcs 1

  • Productivity ha / h 0,1

  • Machine weight kg 245

  • Power demand kW / HP 18 / 25

want to order?

  • Vibrating potato digger aside discharge Z655

    potato harvester

Click For Tech Info...

SPECS TECH

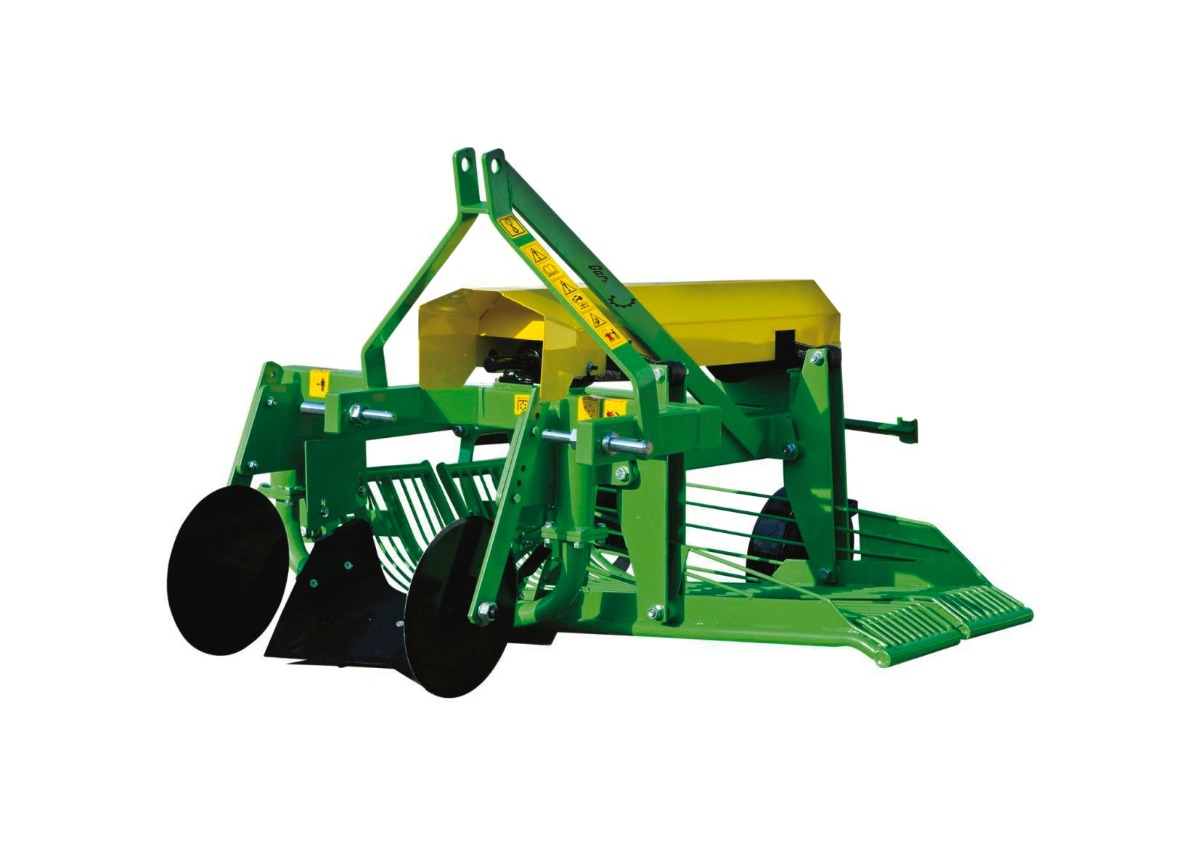

Vibrating potato digger aside discharge Z655

Vibrating digger with aside discharge is designed to harvest of potatoes, sugar beets, carrot and other root crops. Machine is recommended on small plantations on light soils, medium compactness soils without stony, and plant residuals. Simple construction, easy maintenance and service are the important advantages of this machine. Two disc coulters cuts off the plants, dual share cut the ridge in the bottom part carrying it horizontally to the vibratory sifter. Two sifters, moving in opposite directions, removes the soil, puts the vegetables in the narrow rows along the machines. This arrangement ensures smooth working of the machine and makes crop of vegetables easier. It should be noted, that construction of the digger characterized by very low potatoes damage index.

Please see tech specs ↓

  • Symbol – Z655

  • Number of rows pcs 1

  • Share width mm 560

  • Max working depth mm 200

  • Machine weight kg 245

  • Power demand kW / HP 7,5 / 10

want to order?

  • Vibrating potato digger with rear discharge Z655/1

    potato harvester

Click For Tech Info...

SPECS TECH

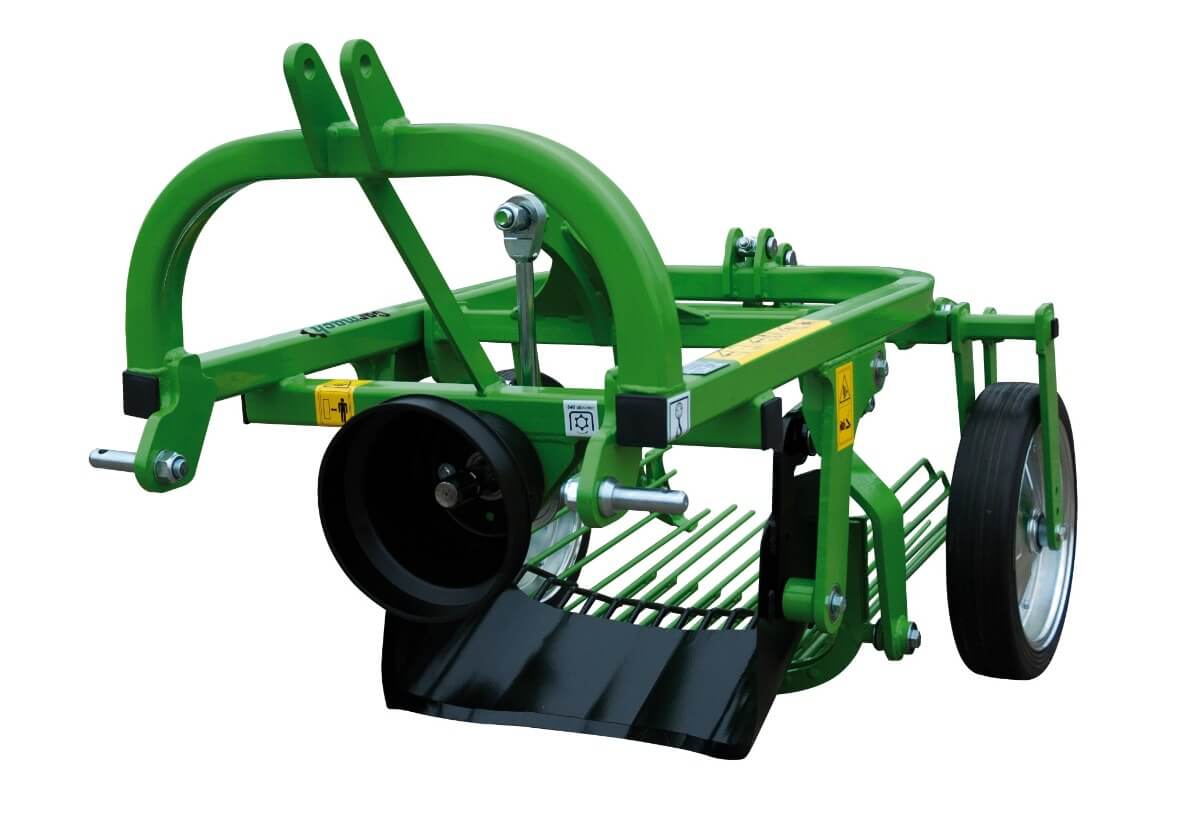

Vibrating potato digger with rear discharge Z655/1

Vibrating digger Z655/1 with rear discharge can be mounted on small tractors equipped with the three-point suspension system of the I cat. The machine consists of a vibrating share with adjustable digging depth that transfers potatoes and soil onto the vibrating hopper sifting potatoes from the soil. The digging depth is adjusted by rear support wheels. Sifting intensity can be increased by adjusting inclination of the sifting hopper. All vibrating elements are moved by a crank mechanism driven from the tractor PTO shaft. Axes of the share and the sifting hopper are equipped with rubber bushings – simmerblocks which allow stability of the machine during operation. Its reduced dimensions enable to use the machine on small plots, flat and hilly areas.

Please see tech specs ↓

  • Symbol – Z655/1

  • Number of rows pcs 1

  • Share width mm 450

  • Max working depth mm 200

  • Machine weight kg 135

  • Power demand kW / HP 7,5 / 10

want to order?
